Demultiplexing Streams in Rust
I am working on message stream processing software.
This is a small Rust application that has to perform two tasks :
- demultiplex stream of RabbitMq messages to many clients connected via WebSocket
- apply rate limiting to each demultiplexed stream dropping messages that exceed the limit
While reading messages from RabbitMq as a stream can be easily done using Lapin, task of demultiplexing them to multiple clients in an efficient way is something that does not seem oficially supported by Streams, nor there is a library available to handle it for me in a way I need.
Therefore a problem to solve is how to demultiplex Stream into multiple Streams based on some message properties (in this particular case message headers). Problem of applying rate limitation will not be described in this post.

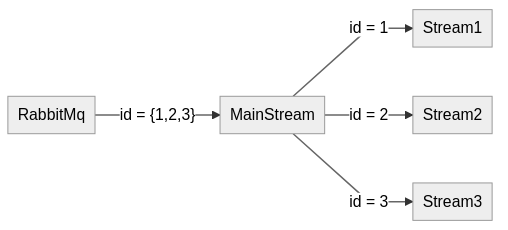

As one picture is worth a thousand words, here's a graph depicting my desired workflow:
It is important to note that implementation needs to be able to dynamically accepts new orders and modify number of resulting Streams.
Other relevant note is that not all messages from main stream need to be rerouted. If there is no "job" that given message matches, the message should be dropped.
Available libraries
The only library I found that deals with demultiplexing (and multiplexing) is mux-stream.
Unfortunately, it seems to only support static (aka known at compile time) demultiplexing. I want to be able to add new Streams to my demultiplexer dynamically. Therefore I need my own implementation.
The Demultiplexer
While implementing demultiplexer I tried to stay as generic as possible, that is why there are so many generic type constraints.
pub struct Demultiplexer<I, S, O, K, E> {
input: I,
sinks: HashMap<K, S>,
orders: O,
error_handler: E,
}
pub trait Identifiable {
type Id;
fn id<'a>(&'a self) -> &'a Self::Id;
}
impl<I, Si, O, K, V, E> Demultiplexer<I, Si, O, K, E>
where
I: Stream<Item = V> + Unpin + FusedStream,
K: Eq + Hash,
V: Identifiable<Id = K>,
Si: Sink<V> + Unpin,
O: Stream<Item = (K, Si)> + Unpin + FusedStream,
E: FnMut(< Si as Sink<V>>::Error),
{
pub async fn run(mut self) {
/*
omitted for now
event loop goes here
*/
}
}
All those generic parameters correspond to one functionality of Demultiplexer.
Starting from the top:
Iis an input stream, a stream that that has to be demultiplexed into different sinksKis a type of a key inHashMapthat stores sinksVis a value that is being passed in by input streamSis a sink for demultiplexed valuesOis a stream of orders that are dynamically added to active sinksEis an error handler for errors that might arise while writing to sink
One trait Identifiable is also introduced to allow identification of message of type V in Demultiplexer. I've not found any suitable trait from standard library, but I did not bother much to do it either.
Notable difference between my dream implementation and one presented above is usage of Sinks instead of Streams as output method. Why is that?
While trying to expose a collection of Streams from Demultiplexer I ran into issues with nature of Streams.
Streams can be polled, so to write to it, you need to have a writing part - and that is exactly abstraction Sink provides. Also, when stream uses waker to inform executor that new message is available, so that it can poll it, it wakes up entire task. If all produced Streams operated as a part of one task, all would be polled, but only one would receive message. I do not know if it is possible and even if it was, it would be inefficient.
Soultion is to make Demultiplexer into kind of event loop that polls main stream and writes messages to appropriate buffers represented by Sinks (and possibly other executor tasks). Having an event loop also allows for accepting new orders, thus dynamically adding new outputs from a Stream.
It makes my implemntation similar to forward function from StreamExt
Demultiplexing
To handle both new messages from input stream and new orders, I need Demultiplexer to run in a loop checking for new messages and orders. At least I hope that I have to, since I did not come up with any better idea. I was hoping to make this component less self aware and composable with other Stream, but I did not succeed in it.
Having said that, my implementation works fine, but is not as perfect as I wanted to be.
In Rust we have couple of ways to poll multiple Streams concurrently (mind that not in parallel!):
FuturesUnordered- I did not dig into this one this much for two reasons. First, I is used withFutures, second,SelectAllactually uses it under the hood.SelectAll- it promises to poll multiple streams concurrently. It can be built either withselect_allfunction or manually, pushing all streams one by one. It requires that all streams are of the same type. It can be hacked a bit to accept stream of multiple types, but it comes at a cost. I'll write more details about it later.select!- a macro that expands into code that polls a known number ofStreamsorFuturesand executes "callbacks" that were passed in. Stream are polled in random order that changes with every poll.select_biased!- similar toselect!, but pollsStreamsin order of declaration.
My goal in next paragraphs is to examine all those techniques and select the one that is both easiest to write and fastest to perform in runtime.
select!
To run even loop with select! I need to put all code in a loop and the use macro.
Its syntax is:
select!
{
variable = stream-to-await => {
"callback" that can use variable
}
}
And putting it in action:
pub async fn run(mut self) {
loop {
select! {
input = self.input.next() => {
match input {
Some(input) => self.forward_input(input).await,
None => {
break;
}
}
},
order = self.orders.next() => {
if let Some(order) = order {
self.sinks.insert(order.0, order.1);
}
},
complete => break,
}
}
}
It is very simple, on new input message I simply forward it to all sinks with forward_input function. When input stream is finished I break event loop as it will no longer be useful.
When new order arrives I just push new Sink into set of available Sinks keyed under id it is associated with.
Macro accepts also complete and default branches that handle cases when, respectively, all streams are finished and none of them is.
Function to forward input is short, split in two so that other implementation with SelectAll can use it.
async fn forward_input(&mut self, element: V) {
Self::forward_input_woself(&mut self.sinks, &mut self.error_handler, element).await;
}
async fn forward_input_woself(sinks: &mut HashMap<K, S>, error_handler: &mut E, element: V) {
let id = element.id();
if let Some(sink) = sinks.get_mut(id) {
let send_result = sink.send(element).await;
if let Err(e) = send_result {
(error_handler)(e);
}
}
}
select_biased!
Implementation is identical, only change is macro's name. It is worth noting that order's are polled first. This is due to the fact that input stream is always ready in my test app, so to poll orders, I need to poll it first. It might have some implications discussed in further sections.
pub async fn run(mut self) {
loop {
select_biased! {
order = self.orders.next() => {
if let Some(order) = order {
self.sinks.insert(order.0, order.1);
}
},
input = self.input.next() => {
match input {
Some(input) => self.forward_input(input).await,
None => {
break;
}
}
},
complete => break,
}
}
}
SelectAll
This is where things start to get interesting.
Using SelectAll requires to put more constraints on Demultiplexer impl block, namely adding Send constraint on two types types.
impl<I, Si, O, K, V, E> Demultiplexer<I, Si, O, K, E>
where
I: Stream<Item = V> + Unpin + FusedStream + Send, // here
K: Eq + Hash,
V: Identifiable<Id = K>,
Si: Sink<V> + Unpin,
O: Stream<Item = (K, Si)> + Unpin + FusedStream + Send, // and here
E: FnMut(< Si as Sink<V>>::Error),
Issue with SelectAll is that while polling streams it has registered, it does not end entire flow if only one of Streams end. It is a major problem as Demultiplexer just has to finish its operations when input Stream is done. To overcome this problem I used ancient method of code reuse - copy-paste from futures crate with necessary tweaks. You can look the code up in there, in version 0.3.12. I'll only show here code I changed, that is Stream implementation for my SelectAllCustom.
Code that is commented out is the exact code that was breaking my application.
impl<St: Stream + Unpin> Stream for SelectAllCustom<St> {
type Item = St::Item;
fn poll_next(mut self: Pin<&mut Self>, cx: &mut Context<'_>) -> Poll<Option<Self::Item>> {
loop {
match ready!(self.inner.poll_next_unpin(cx)) {
Some((Some(item), remaining)) => {
self.push(remaining);
return Poll::Ready(Some(item));
}
// Some((None, _)) => {
// // `FuturesUnordered` thinks it isn't terminated
// // because it yielded a Some.
// // We do not return, but poll `FuturesUnordered`
// // in the next loop iteration.
// }
_ => return Poll::Ready(None),
}
}
}
}
Knowing that, here's Demultiplexer implementation using it.
enum DemuxTask<V, K, S> {
Order((K, S)),
Input(V),
}
pub async fn run(mut self) {
let orders = self.orders.map(|o| DemuxTask::<V, K, S>::Order(o));
let input = self.input.map(|v| DemuxTask::<V, K, S>::Input(v));
let mut tasks: SelectAllCustom<Box<dyn Stream<Item = DemuxTask<V, K, S>> + Unpin + Send>> =
SelectAllCustom::new();
tasks.push(Box::new(orders));
tasks.push(Box::new(input));
loop {
match tasks.next().await {
Some(DemuxTask::Order((key, sink))) => {
self.sinks.insert(key, sink);
}
Some(DemuxTask::Input(input)) => {
Self::forward_input_woself(&mut self.sinks, &mut self.error_handler, input)
.await
}
None => break,
}
}
}
Hack to actually make SelectAll work with different types of Streams is to explicitly specify SelectAll type to SelectAllCustom<Box<dyn Stream<Item = DemuxTask<V, K, S>> + Unpin + Send>> and create an enum to accomodate both message types - DemuxTask. It works, but has some additional cost related to Stream transformations with map and also with boxing Streams, however I am not sure how it is handled later by SelectAll implementation.
Ease of use
Regarding ease of use versions of Demultiplexer using select* macros are clear winners. SelectAll is not only clumsier to use, but to work it also requires copy pasting code, unless there is a way to make library version do what I want it to.
Performance
To test performance of Demultiplexer I need a test application and a profiler or benchmark tool. Let's start with the first one.
I am using tokio as async runtime and flume as my channels library. Application defines Message type and creates 100_000_000 messages with 3 distinct ids. I am using single-threaded runtime as it was actually faster than multithreaded one in this small application, probably due to startup and teardown costs. It does not matter that much actually, as long as all tests are executed in same environment. I should have probably test all functions in multithreaded runtime as well, as performance is a tricky beast, but to keep this post more focused, I decided not to.
mod client;
mod demux;
mod select_all;
use client::*;
use demux::*;
use futures::{stream, StreamExt};
use std::fmt::Display;
fn main() {
let rt = tokio::runtime::Builder::new_current_thread()
.build()
.unwrap();
rt.block_on(tokio_main());
}
async fn tokio_main() {
let messages = vec![
Message {
id: 1,
word: "one".into(),
},
Message {
id: 2,
word: "two".into(),
},
Message {
id: 3,
word: "three".into(),
},
];
let take = 100_000_000;
let values = stream::iter(messages).cycle().take(take).fuse();
let (os, or) = flume::unbounded::<(i32, VecWrapperClient<Message>)>();
let dmux = Demultiplexer::new(values, or.into_stream(), |e| {
println!("Error while sending in demux : {}", e);
});
os.send((1, VecWrapperClient::new(1, take / 3 + 10))).unwrap();
os.send((2, VecWrapperClient::new(2, take / 3 + 10))).unwrap();
os.send((3, VecWrapperClient::new(3, take / 3 + 10))).unwrap();
let _ = tokio::spawn(dmux.run()).await;
println!("Application exiting")
}
#[derive(Debug, Clone)]
struct Message {
id: i32,
word: String,
}
impl Display for Message {
fn fmt(&self, f: &mut std::fmt::Formatter<'_>) -> std::fmt::Result {
write!(f, "{}", self.word)
}
}
impl Identifiable for Message {
type Id = i32;
fn id<'a>(&'a self) -> &'a Self::Id {
&self.id
}
}
I hope you noticed VecWrapperClient type that certainly does not come from library. What is that?
To test Demultiplexer I wanted to have cheap Sink. I could use flume's channels, but they are surpisingly expensive to use in my benchmarks, cluttering flamegraphs. Fortunately, I found that good old Vec implements Sink! I did not want to implement my own Sink as they are much more complex to implement than Streams. Therefore I created thin wrapper (in order to be able to implement custom Drop) on Vec and forwarded all Sinks functions to Vec's implementation.
In real application Sinks should probably be senders of some channels to make it really functional, but for simple application like this that is mostly used for benchmarking and profiling, this should be enough.
pub struct VecWrapperClient<T>(i32, Vec<T>);
impl<T> VecWrapperClient<T> {
pub fn new(id: i32, capacity: usize) -> Self {
VecWrapperClient(id, Vec::with_capacity(capacity))
}
}
impl<T> Deref for VecWrapperClient<T> {
type Target = Vec<T>;
fn deref(&self) -> &Self::Target {
&self.1
}
}
impl<T> DerefMut for VecWrapperClient<T> {
fn deref_mut(&mut self) -> &mut Self::Target {
&mut self.1
}
}
impl<Item: Unpin> Sink<Item> for VecWrapperClient<Item> {
type Error = <Vec<Item> as Sink<Item>>::Error;
fn poll_ready(
mut self: std::pin::Pin<&mut Self>,
cx: &mut std::task::Context<'_>,
) -> std::task::Poll<Result<(), Self::Error>> {
Pin::new(&mut self.1).poll_ready(cx)
}
fn start_send(mut self: std::pin::Pin<&mut Self>, item: Item) -> Result<(), Self::Error> {
Pin::new(&mut self.1).start_send(item)
}
fn poll_flush(
mut self: std::pin::Pin<&mut Self>,
cx: &mut std::task::Context<'_>,
) -> std::task::Poll<Result<(), Self::Error>> {
Pin::new(&mut self.1).poll_flush(cx)
}
fn poll_close(
mut self: std::pin::Pin<&mut Self>,
cx: &mut std::task::Context<'_>,
) -> std::task::Poll<Result<(), Self::Error>> {
Pin::new(&mut self.1).poll_close(cx)
}
}
impl<T> Drop for VecWrapperClient<T> {
fn drop(&mut self) {
println!("Vec client {} received {} messages", self.0, self.1.len());
}
}
As a profiler I chose perf with hotspot to view recorded data. For preliminary examination I used time command from Linux.
My machine is using AMD Ryzen 5 3600 (Six core processor) with hyper-threading enabled. I have 16GB of RAM, operating system is Linux Mint 20.1. I am using rustc 1.49.0 (e1884a8e3 2020-12-29).
Profiling
Simple results from time are (based on 5 runs average) presented below.
| Implementation | Time (s) |
|---|---|
| select! | 15.8 |
| select_biased! | 15.8 |
| SelectAllCustom | 22.1 |
Not so bad, but can we do better and how?
One simple optimization comes from Rust Performance Book from chapter about build configurations. It says that we can help compiler produce better code at the cost of compilation time. I added following in my Cargo.toml:
[profile.release]
codegen-units = 1
lto = true
For details about what exactly are those flags imposing on compiler, please see Rust Performance book.
Results of this simple optimization are presented below:
| Implementation | Time (s) |
|---|---|
| select! | 13.5 |
| select_biased! | 12.3 |
| SelectAllCustom | 17.2 |
Quite nice! Having added 3 lines in Cargo.toml and waiting some more time for application to compile, I achieved non-negligible performance improvement!
Let's try actually profiling running application and see what it is doing to spot additional fields for improvement. To make profiling possible some tweaks to release profile need to be applied to include debug symbols in release build. Final Cargo.toml section for release profile looks like this:
[profile.release]
codegen-units = 1
debug = 1
lto = true
Since analyzing application performance with profilers can be tedious and this blog post is already lengthy, I decided to only analyze already fastest version using select_biased!.
Using following perf command I collected trace of the application:
perf record --call-graph dwarf -o select_biased_vanilla.perf.data ./target/release/stream-demux

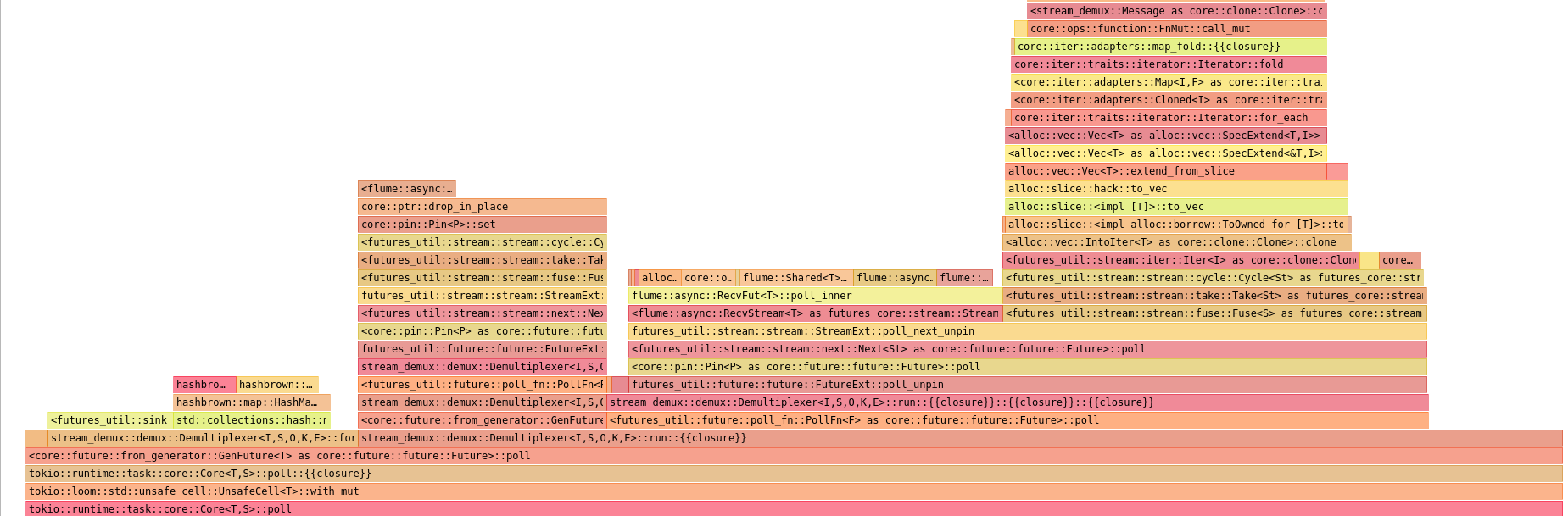

And later displayed a flamegraph using hotspot:

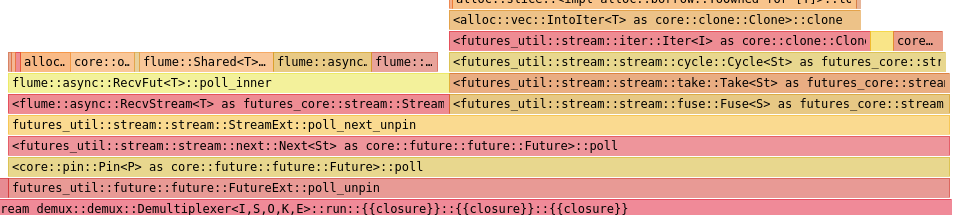

Since it is quite big and might not be visible on smaller screens, here's zoom into interesting section:
It clearly show that a lot of time is used polling flume::async::RecvStream<T>. Why?
In my implementation, orders are delivered by flumes's async channel. And orders are always polled first, even though they arrive rarely. This is done for correctness reasons. Can we do anything about it? Answer really depends on:
- characteristics of your application
- how desperate you are
I am polling orders first, since input is a Stream that is always ready. I tested what happens if I reverse polling order and performance increased significantly, but application no longers served its purpose as no message was delivered to appropriate Sink (hence Drop implementation on my Sink to report number of received messages).
If your application is under such a heavy load that you risk never polling orders as in my case, solution exists, but is not simple. In other cases, if you can afford loosing a few messages sometimes due to input being ready before orders for some time, you might want to revert order of polling in select_biased. You need to test it yourself, corectness in a priority, performance comes afterwards!
For those eager to learn what crazy things you can do to overcome this problem, below I present my solution. It only works correctly under assumption that your system is under extremely heavy load. Extremely. Heavy. Load. So heavy that input stream always has ready message. It is unlikely in real applications, because such streams usually come from some external resources that require network roundtrip to get information and thus leave some time for orders. In any way, measure first!
Some dark magic
select_biased is fastest to execute, but has one irritating feature - it always polls the same stream first and we are unable to change it ... are we? It is a macro, so it expands to something. Why don't we see into what? To do this you can use cargo expand subcommand.
Code that it actually expands to is listed below. It is quite lenghty, that is the power of macros! I cleaned it a bit to make it more readable. Actual cargo expand will give you much uglier code.
pub async fn run(mut self) {
loop {
{
enum PrivResult<_0, _1> {
_0(_0),
_1(_1),
Complete,
}
let select_result = {
let mut orders = self.orders.next();
let mut input = self.input.next();
let poll_fn = |__cx: &mut futures::task::Context<'_>| {
let mut any_polled = false;
let mut orders = |__cx: &mut futures::task::Context<'_>| {
let mut orders = unsafe { Pin::new_unchecked(&mut orders) };
if futures::future::FusedFuture::is_terminated(&orders) {
None
} else {
Some(
futures::future::FutureExt::poll_unpin(&mut orders, __cx)
.map(PrivResult::_0),
)
}
};
let orders: &mut dyn FnMut(
&mut futures::task::Context<'_>,
)
-> Option<futures::task::Poll<_>> = &mut orders;
let mut input = |__cx: &mut futures::task::Context<'_>| {
let mut input = unsafe { Pin::new_unchecked(&mut input) };
if futures::future::FusedFuture::is_terminated(&input) {
None
} else {
Some(
futures::future::FutureExt::poll_unpin(&mut input, __cx)
.map(PrivResult::_1),
)
}
};
let input: &mut dyn FnMut(
&mut futures::task::Context<'_>,
)
-> Option<futures::task::Poll<_>> = &mut input;
let mut select_arr = [orders, input];
for poller in &mut select_arr {
let poller: &mut &mut dyn FnMut(
&mut futures::task::Context<'_>,
)
-> Option<futures::task::Poll<_>> = poller;
match poller(__cx) {
Some(x @ futures::task::Poll::Ready(_)) => return x,
Some(futures::task::Poll::Pending) => {
any_polled = true;
}
None => {}
}
}
if !any_polled {
futures::task::Poll::Ready(PrivResult::Complete)
} else {
futures::task::Poll::Pending
}
};
futures::future::poll_fn(poll_fn).await
};
match select_result {
PrivResult::_0(order) => {
if let Some(order) = order {
self.sinks.insert(order.0, order.1);
}
}
PrivResult::_1(input) => match input {
Some(input) => self.forward_input(input).await,
None => {
break;
}
},
PrivResult::Complete => break,
}
}
}
Whooah! This is long! What it does is in essence, creating closures to poll each Stream, doing some on stack dynamic dispatch, creating array (select_arr) of those functions and later just calling it untill any succeeds (or none).
It is clearly visible that array is always in the same order. Could we tweak it a bit? Would it help? Let's try!
Idea is to count messages arriving in Demultiplexer and when they reach certain threshold, poll orders once and reset threshold. As I said, this only works almost correctly in systems that are under heavy load, that can afford tiny message loss and that do not receive many orders compared to number of messages.
To implement it I added a counter in run functions like this:
pub async fn run(mut self) {
let mut counter = 0i32;
loop { /* some code */ }
}
I also modified code constructing select_arr a bit. Rest of code is that same as on previous lisitng of macro expand.
let mut select_arr = if counter < 100 {
counter += 1;
[input, orders]
} else {
counter = 0;
[orders, input]
};
Running the program shows that result is almost correct. Less messages are delivered to sinks, but number of lost messages is extremely low compared to overall number. If this is acceptable depends on you and your application. In my case of my application it is not a problem.
Let's try it out with time first.
| Implementation | Time (s) |
|---|---|
| select_biased_custom! | 9.6 |
Less than 10 seconds! Quite fast compared to other versions. At least loosing messages has attributed to some performance gains.
Analysis of perf data in hotspot also shows that code polling flume's Receiver is gone. It is invoked, but so little that it is not even shown on flamegraph.
I also tried to use timing to poll orders only sometimes, but using time is suprisingly (or not at all) expensive in such a tight loops. Maybe it would not matter in real application, but here flamegraph was ruthless.
The code probably can go faster, for example by implementing mechanism to store Sinks other than HashMap as flamegraph shows that storing it there is not as trivial as it might seem. However, this would be clearly overoptimization in most use cases ;).
I hope you learnt something interesting from this lengthy blog post! The final part is probably premature optimization, but I had some fun doing it and it was clearly a development for me to investigate it!
References
Official Stream documentation.
Official StreamExt documentation.
Download hotspot - version 1.3.0 (and NOT continuous build) have proper Rust symbol demangling
